EASYTOM L 450 – HIGH ENERGY

EasyTom L 450: high energy and high resolution in a compact format. Unequalled NDT performance for industrial inspection.

High energy and high resolution - Greater versatility thanks to a dual-tube configuration.

The EasyTom L 450 - High Energy offers unrivalled flexibility thanks to its optional dual-tube configuration. Combine a 450 kV high-energy tube for analysis of dense parts or complex alloy assemblies, with a 150 kV microfocus sealed tube, to obtain detail from 40 µm down to 5µm. A versatile, complementary combination for quality control of your industrial parts.

Flat Panel & LineScan: acquisition without compromise.

The EasyTom L 450 can be fitted with different types of Flat Panel, depending on the type and size of part to be inspected. To take quality control and data accuracy even further, it is now possible to equip our latest CT scanner with a LineScan. Flat Panel: Captures high-resolution images with rapid acquisition and a wide field of view, ideal for inspections requiring a global view of parts. LineScan: Reduces scattering artefacts, improves contrast and optimises acquisition of fine detail, particularly useful for very dense materials or complex geometries.

A compact, powerful and high-performance CT system

The EasyTom L 450 combines high energy and compact size, offering a tomographic solution suited to industrial environments and confined spaces. Optimized format: With a footprint of just 2.9 m², our CT scanner fits easily into a laboratory or production floor. Optimized scan volume: A source-to-detector distance (SDD) of 1,400 mm means you can inspect large parts while maintaining high image quality. Robustness and reliability: Designed for intensive industrial use with a sealed tube, the EasyTom L 450 kV can be used for long periods with reduced maintenance..

DOWNLOAD THE BROCHURE

I need a quote

ultratom

technical
data

High energy: Up to 450kV, single or dual tubes, meso and micro-focus
Performance: Very high spatial resolution down to 5µm thanks to the second micro-focus tube
Easy integration: compact CT system: Length 2.4 m x width 1.2 m - Height: 2.0 m - 2.9m² footprint
Versatility: Wide choice of high-performance Flat Panel imagers, can be combined with a LineScan
Large internal space: 1400 mm SDD. Large scan volume: up to Ø475 x 580 mm

Precise mechanics: granite base, anti-vibration damping, linear encoders, internal temperature control
Ergonomic: lowered loading point. Open door adjustments. Up to 9 moving axes. Motorized tube-imager distance
Low maintenance: Robust design and components. Sealed tubes. Easy maintenance access
Easy: Motorised centring plate can support up to 80 kg. Switch from tube to tube and from Flat Panel imager to LineScan in less than a minute, without calibration
Efficient: High-speed scans, automated scan-to-analysis, sample loader for extended autonomy, motorized door for robotic loading.

download the brochure

I need a quote

COMPARISION BETWEEN 225 kV AND 450 kV

Aerospace

Aerospace blade. Left slice made at 225 kV and right slice made at 450 kV

Automotive

Automotive turbine. Left slice made at 225 kV and right slice made at 450 kV

ALM 3D printing

3D printed metal part. Left slice made at 225 kV and right slice made at 450 kV

Medical

Medical implant. Left slice made at 225 kV and right slice made at 450 kV

High-energy CT system
For your daily CT scans

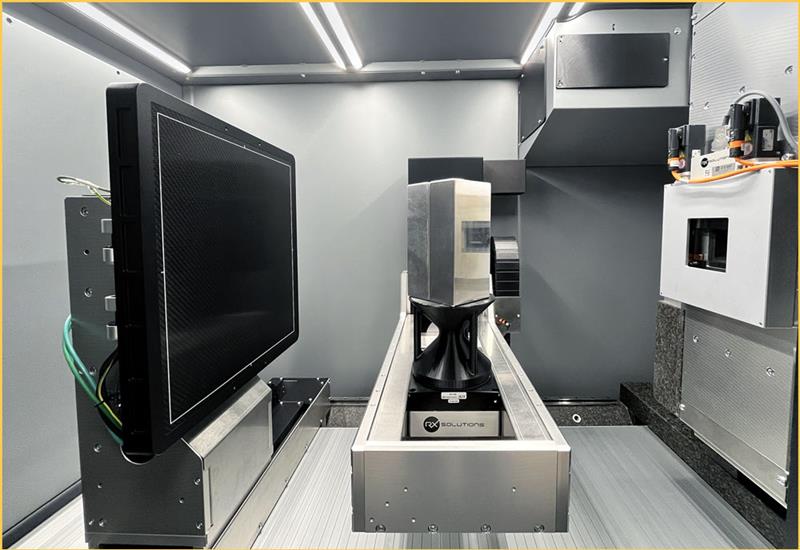

Large cabinet - SDD 1400 mm

Large cabin: Thanks to an SDD of over 1400mm, the field of vision is maximized, enabling the handling of larger workpieces.

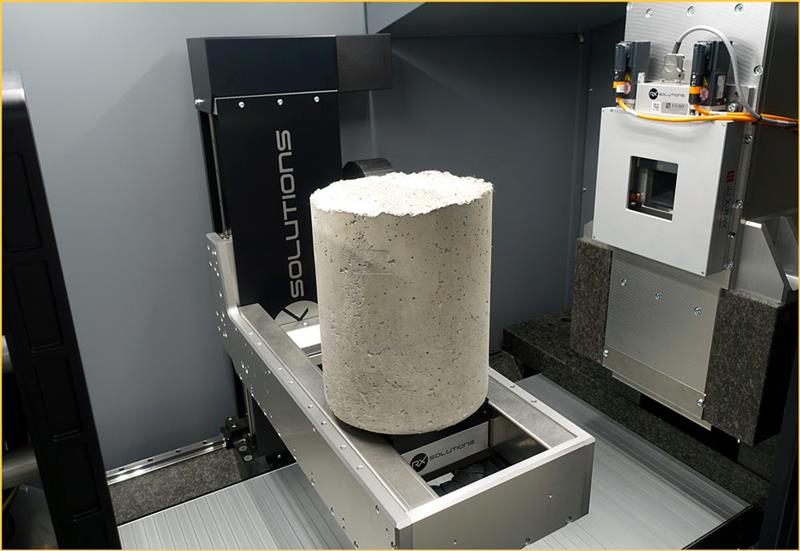

Made for industry CT scans

Centering stagen up to 80 kg: possibility of scanning heavier parts and setting up larger experiments.

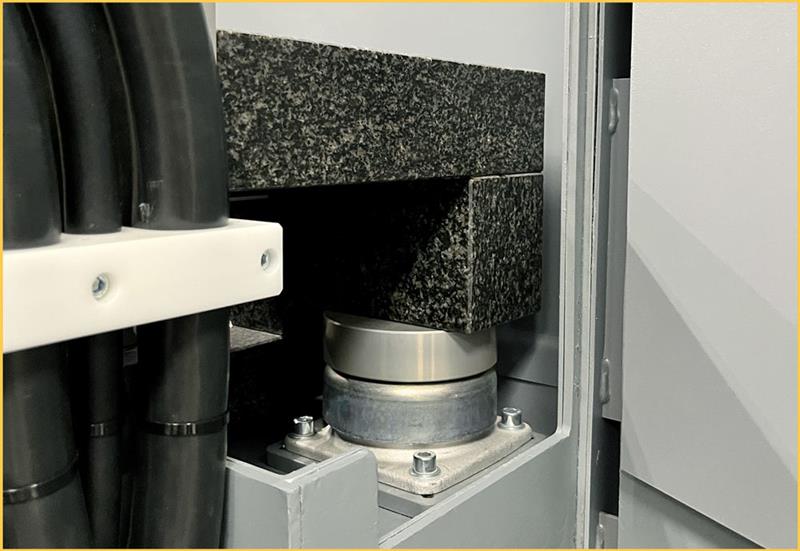

Optimized for metrology

Optimized for metrology: granite base, anti-vibration dampers, temperature control.

Large cabinet - SDD 1400 mm

Large cabin: Thanks to an SDD of over 1400mm, the field of vision is maximized, enabling the handling of larger workpieces.

Made for industry CT scans

Centering stagen up to 80 kg: possibility of scanning heavier parts and setting up larger experiments.

Optimized for metrology

Optimized for metrology: granite base, anti-vibration dampers, temperature control.

application
domains

additive manufacturing

aerospatial

automotive

art & jewellery

composite

electronic

plastic injection molding

medical & dental

foundry

oil & gas

plastic

recherche & sciences

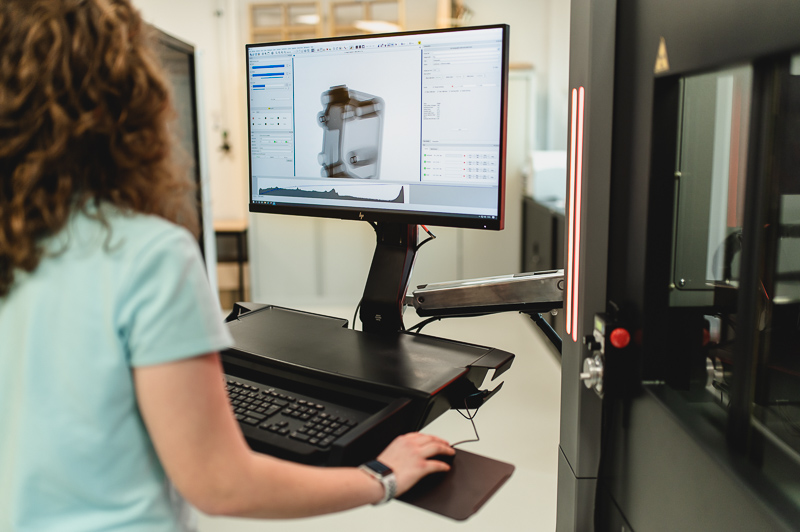

X-Act: All-in-one software for 3D acquisition and reconstruction

X-Act is a powerful and intuitive software designed by the teams at RX Solutions to optimize the entire X-ray tomography inspection process. From system configuration to 3D reconstruction, it centralizes all the essential functions to guarantee accurate, high-quality results.

Thanks to its ergonomic design, X-Act simplifies acquisition management and ensures optimum image reconstruction, regardless of the type of sample analyzed, for all our industrial CT scanners.

X-Act's features make it an intuitive, high-performance solution. In particular, thanks to its 14 acquisition modes:

Step by step scan

Continuous fast scan

Limited angles scan

Variable angles scan

Vertical extension stack scan

Horizontal extension shift

Virtual centering

Step by step scan

Continuous fast scan

Limited angles scan

Variable angles scan

Vertical extension stack scan

Horizontal extension shift

Virtual centering

Region of Interest local scan

Global scan and ROI scan

Laminography

Anti-ring shift

Helical scan

6-pass scan

4D CT

Region of Interest local scan

Global scan and ROI scan

Laminography

Anti-ring shift

Helical scan

6-pass scan

4D CT

Intelligent features for optimised results

X-Act embeds advanced tools guaranteeing sharp, usable images:

✔ Automatic artefact correction (beam hardening, metallic artefacts, circular artefacts, etc.).

✔ Automatic calibration and stabilisation for optimum accuracy without manual intervention.

A complete solution for your industrial quality control

By integrating all these functionalities within a single platform, X-Act optimises inspection efficiency while guaranteeing a fluid, high-performance user experience. Compatible with RX Solutions systems, it is an essential tool for industries that demand precision, speed and reliability in the analysis of industrial parts.

DISCOVER X-Act

Training, Support & Maintenance - Expertise at your service

At RX Solutions, we provide comprehensive support to ensure the performance and longevity of your CT system. From planning to installation, including training and maintenance, our team is with you every step of the way to ensure that your equipment is working at its best and that your teams are technically proficient.

Personalised support for effective start-up

We offer training adapted to all levels, so that your teams can fully exploit the capabilities of your system:

✔ Basic training for fast, intuitive use.

✔ Advanced training to deepen functionality and optimise performance.

Responsive support for maximum availability

Our experts are available to assist you via several channels:

✔ Telephone and remote assistance for fast, efficient troubleshooting.

✔ Preventive and corrective maintenance with contracts tailored to your needs

Regular updates for optimum performance

To ensure that your system continues to evolve, we ensure the integration of the couple of features developed by RX Solutions. This optimises performance, avoids unnecessary downtime and improves the lifespan of your equipment.

Thanks to our technical support and expertise, you can maximise your return on investment while benefiting from a reliable, high-performance system over the long term.

When you choose an RX Solutions CT scanner, you get much more than a machine and advanced technology. Our commitment begins with the initial contact and extends to our comprehensive training, support and maintenance services, ensuring that you get the most out of your inspection system from start to finish.
